OCPP EV Charging Solutions

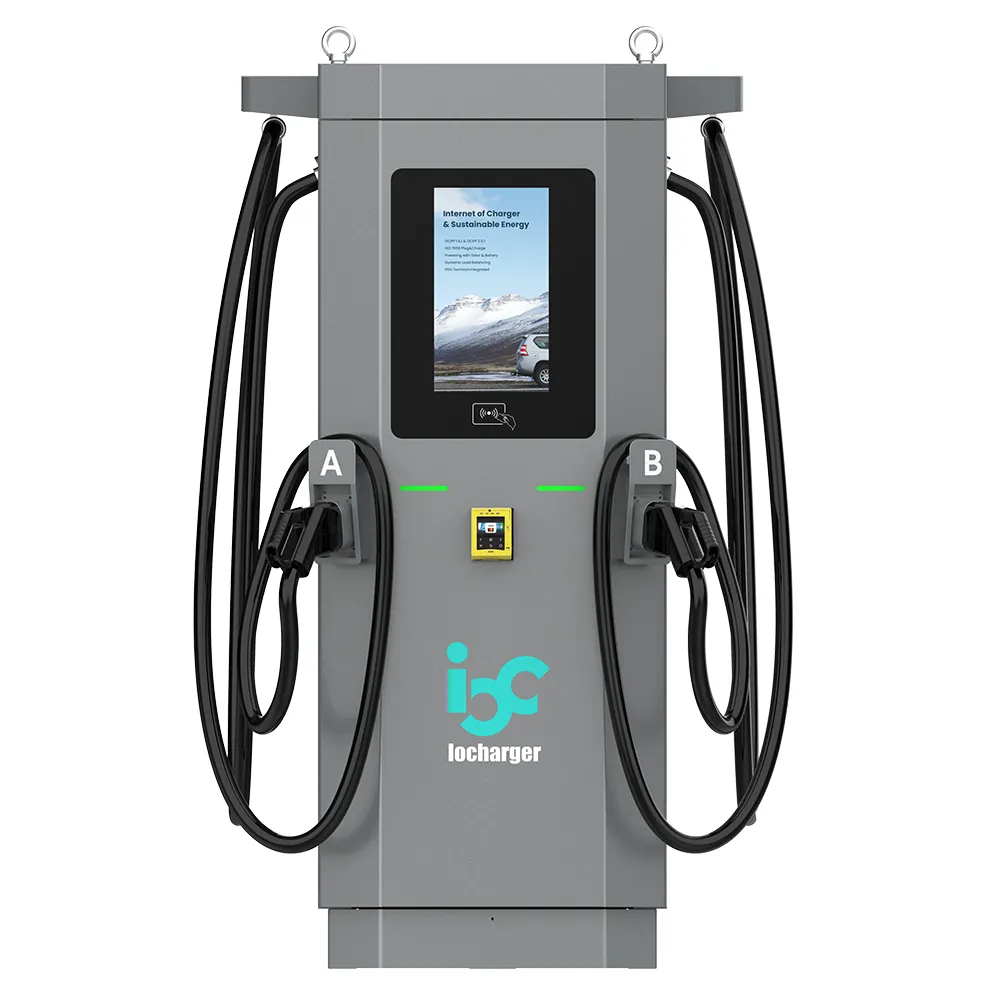

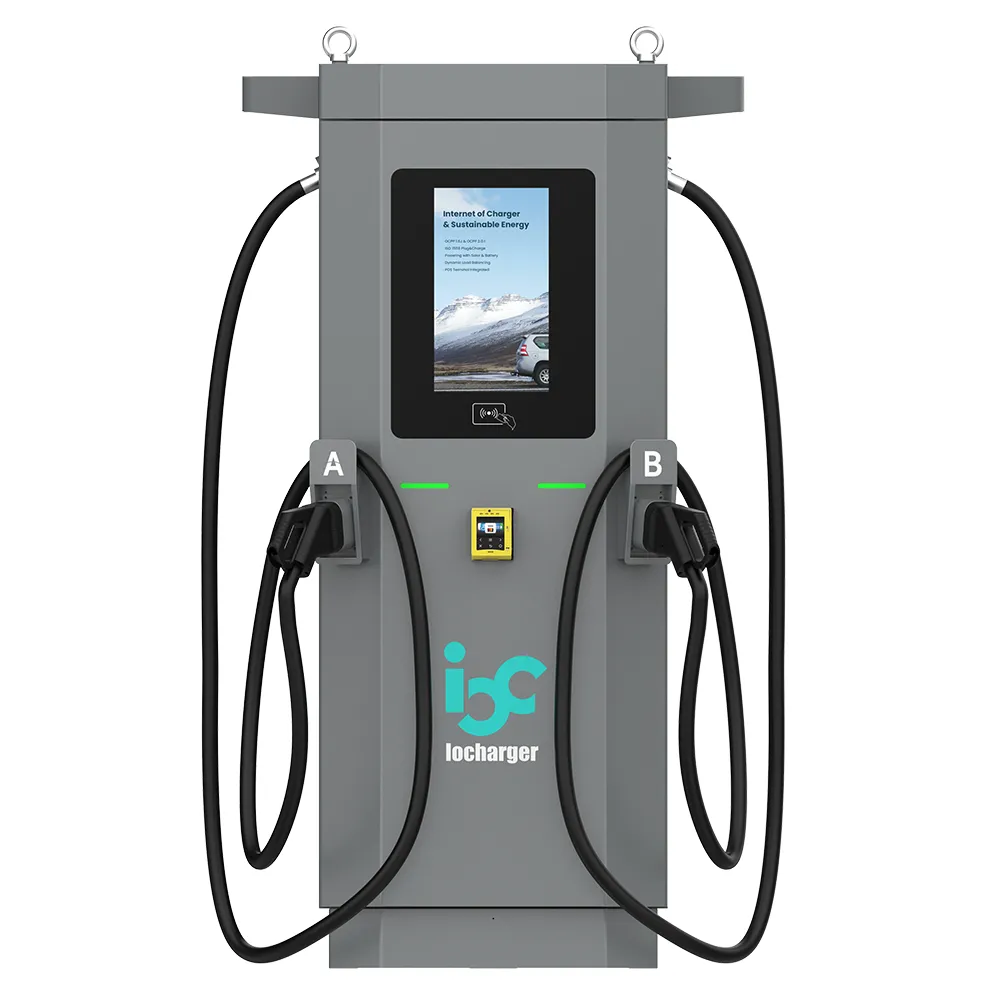

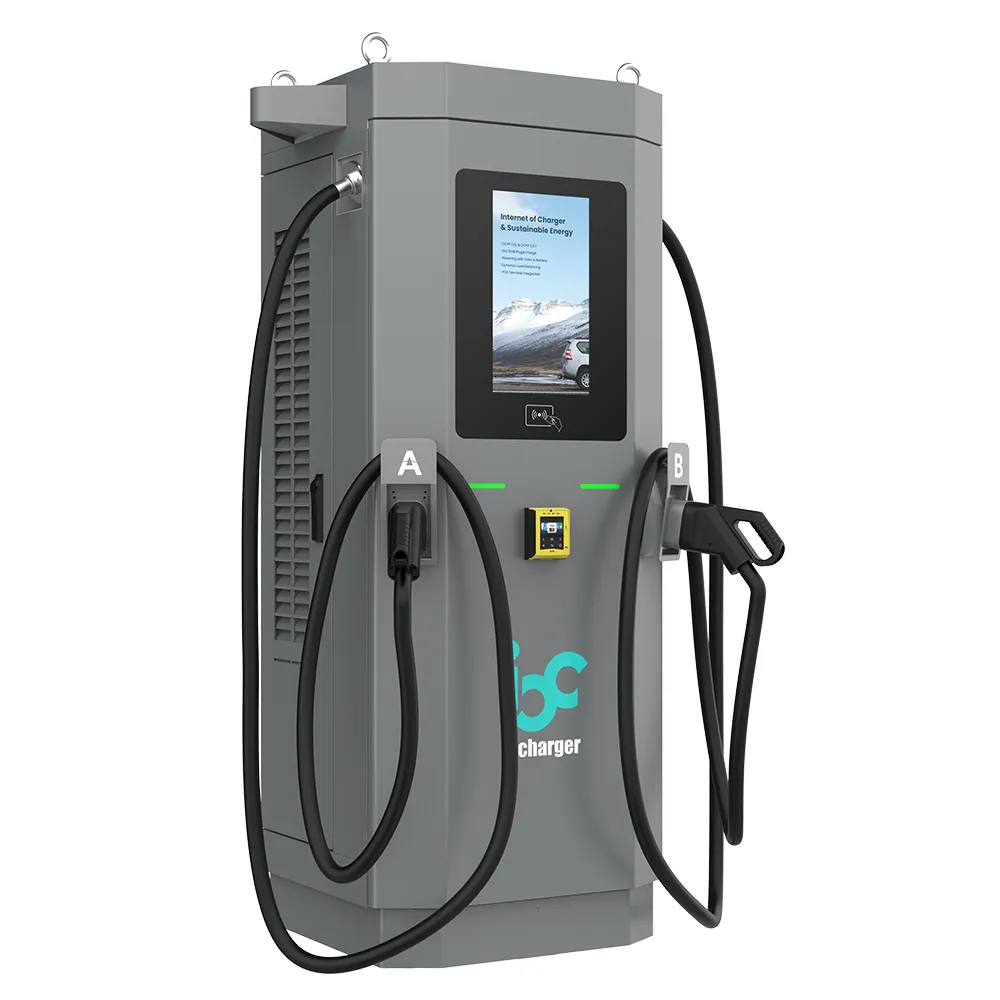

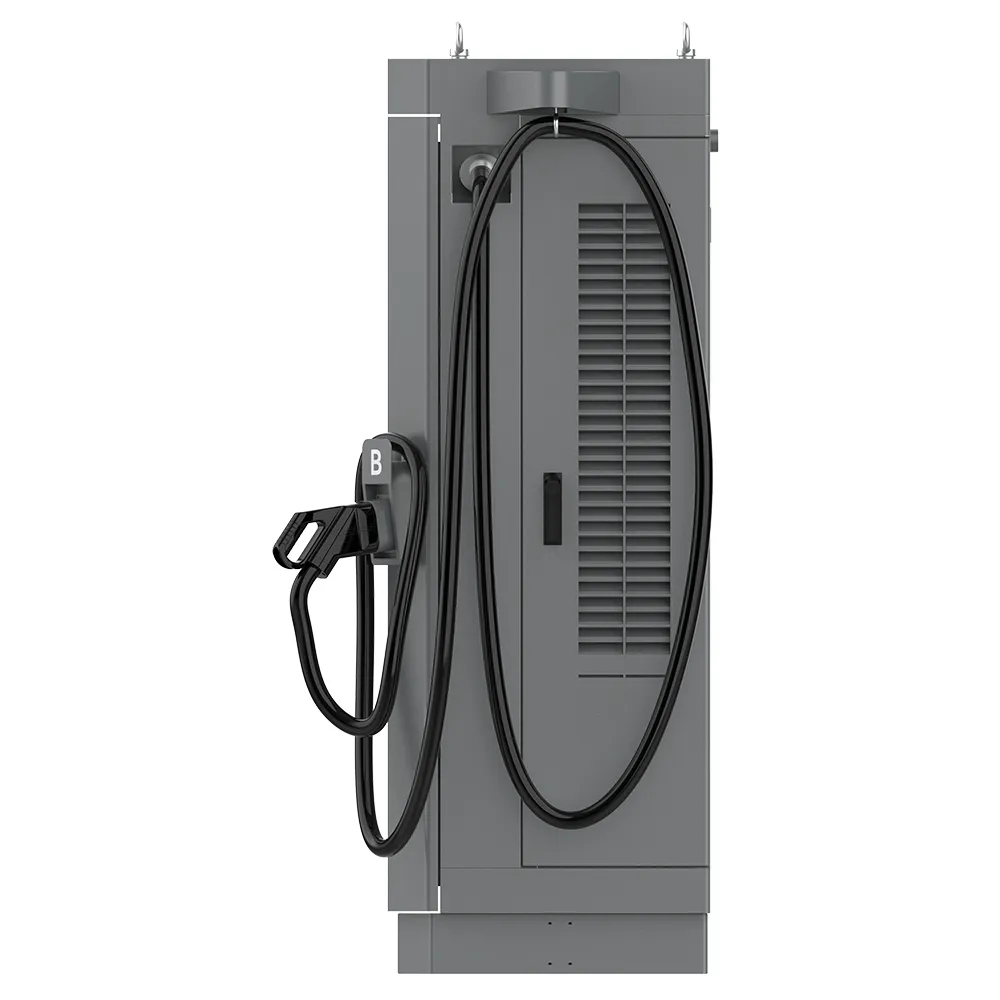

DC Fast Charger

Mode 4 OCPP 1.6J OCPP 2.0.1 60kW 90kW 120kW 150kW 180kW DC Fast Charger

IOCJY2 is designed for quick and convenient charging to meet the fast charging demands, easy to use for everyone.
Model: IOC060JY2 IOC090JY2 IOC120JY2 IOC150JY2 IOC180JY2

Input Rating: 3-phase 400V±15% AC
Max DC output power: 60kW/90kW/120kW/150kW/180kW
Output DC voltage range: 150-1000V DC
Display: 8” TFT Touch Screen LCD
Network Interface: Ethernet/ WiFi/ 4G smart internet connection
OCPP: OCPP 1.6J/ OCPP 2.0.1 full profiles support
ISO15118 Plug&Charge: Upgradable
Ingress Protection: IP55
Charging Interface: CCS1, CCS2, CHAdeMO and GB/T
Mounting Type: Floor
Dimension: 1816×1007×640mm

More and more EVs hit the road nowadays, and long range EV models are becoming the trend in the market. While the EV drivers enjoying a long distance trip, faster charging becomes necessary. IOCJY2 chargers are now available to meet the fast charging demands.

Main features:

  • DC fast charger supporting CCS, CHAdeMO or GBT
  • ISO 15118 Plug & Charge
  • Multi languages supported
  • Daylight readable touch screen display
  • RFID authorization
  • Pin-Code (OTP) supported
  • Robust all weather stainless steel enclosure
  • Quick & easy installation

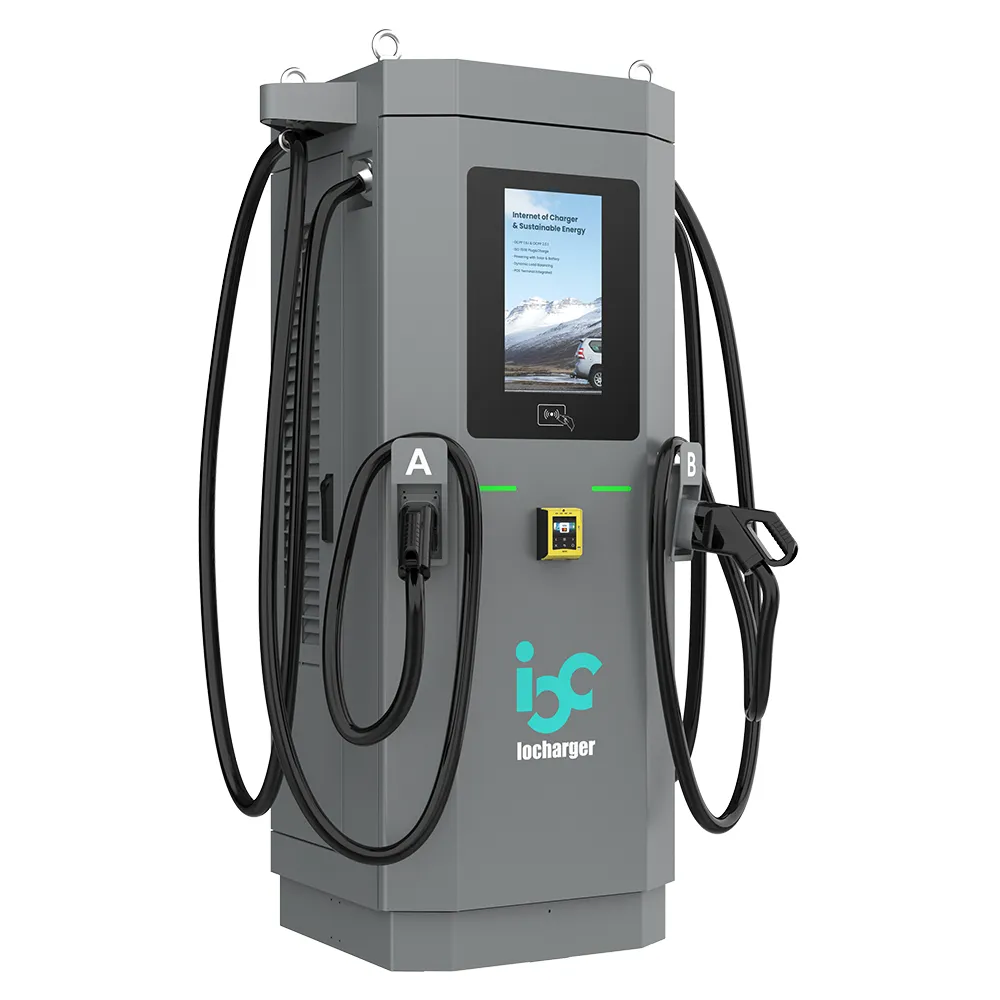

dc fast charger with POS payment

Perfect partner for fast EV charging

IOCJY2 DC fast chargers are designed for quick and convenient charging for all Electric Vehicle models which support CCS 1, CCS 2, CHAdeMO and GB-T connectors. With its modularity allows an maximum charging power up to 180kW and can charge 2 electric vehicles at the same time.

Latest OCPP compliant

IOCJY2 is fully OCPP 1.6J and OCPP 2.0 compliant, which means you can easily connect it to your CCMS for remote monitoring and management. Load balancing feature of IOCJY2 chargers makes it perfect for public and fleet use.

Harmonious commercial EV charging

With iocharger’s advanced load management technology, IOCJY2 can distribute output power smartly if the station power is limited which makes it easy for the station management.
